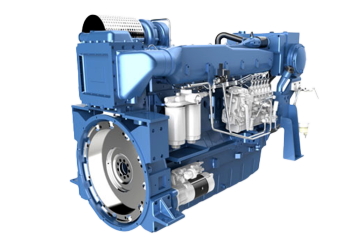

WEICHAI WD10 MARINE ENGINE
- Power range:170-326HP(125-230kw)
- Displacement:9.726L
- Description: 4 stroke,water cooled, 6 cylinders in line
Email: sales@boatdieselengine.com
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
PRODUCT DESCRIPTION
General Specifications
| Configuration | 6 Cylinders,in line,4-stroke diesel | |||||
| Power Output Size | SAE1/14” | |||||
| Bore x Stroke | 4.96×5.12 in 126×130 mm | |||||
| Displacement | 594 cu in 9.726L | |||||
| Min.Fuel Consumption | 198g/(kW·h) | |||||
| Emission | IMOⅡ | |||||
Commercial Ratings
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating |
| WD10C190-15 | 190 | 140 | 1500 | TA | Mechanical | P1 |
| WD10C200-21 | 200 | 147 | 2100 | T | Mechanical | P1 |
| WD10C218-15 | 218 | 160 | 1500 | TA | Mechanical | P1 |
| WD10C240-15 | 240 | 176 | 1500 | TA | Mechanical | P1 |
| WD10C240-18 | 240 | 176 | 1800 | TA | Mechanical | P1 |
| WD10C278-15 | 278 | 205 | 1500 | TA | Mechanical | P1 |
| WD10C278-18 | 278 | 205 | 1800 | TA | Mechanical | P1 |
| WD10C278-21 | 278 | 205 | 2100 | TA | Mechanical | P1 |
| WD10C300-21 | 300 | 220 | 2100 | TA | Mechanical | P1 |
| WD10C312-18 | 312 | 230 | 1800 | TA | Mechanical | P1 |
| WD10C326-21 | 326 | 240 | 2100 | TA | Mechanical | P1 |
Main Dimensions &Dry Weight
| Model | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) | ||
| WD10(TA) | 948/37 | 1176/46 | 1056/2328 | ||
| WD10(T) | 948/37 | 1176/46 | 1018/2244 | ||
| Dimensions may vary based on selected engine configuration. | |||||
